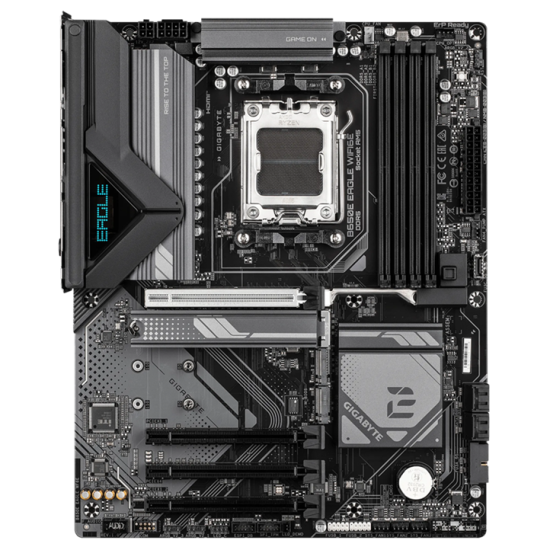

GIGABYTE B650 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi

CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
GIGABYTE
MediaTek Wi-Fi 6E MT7902;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Bluetooth version may change with updates. See the Wi-Fi chip vendors website for details.
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)5200/4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Support for GIGABYTE Control Center (GCC);;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors
AMD B650
5.3
Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
iTE® I/O Controller Chip
1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);1 x Q-Flash Plus button;4 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x USB 3.2 Gen 2 Type-A ports (red);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x RJ-45 port;2 x USB 3.2 Gen 1 ports;2 x antenna connectors (1T1R);3 x audio jacks
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
ATX Form Factor; 30.5cm x 24.4cm
Support for Windows 11 64-bit;Support for Windows 10 64-bit
36 Months
