USB Chipset:;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports available through the internal USB header;Chipset+2 USB 2.0 Hubs:;- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Manufacturer GIGABYTE
Wireless Intel® Wireless- AC 9560 (PCB rev. 1.0);- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band;- BLUETOOTH 5.1;- Support 11ac 160MHz wireless standard
Memory type Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules;2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity);of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
Features Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported;functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash
CPUs supported LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™;Pentium® Gold and Celeron® Processors;(Go to GIGABYTEs website for the latest CPU support list.);L3 cache varies with CPU
Chipset Intel® H610 Express Chipset
Bluetooth 5.1
Graphics Integrated Graphics Processor-Intel® HD Graphics support:;- 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB);- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support);(M2Q_SB);- 4 x SATA 6Gb/s connectors
I/O iTE® I/O Controller Chip

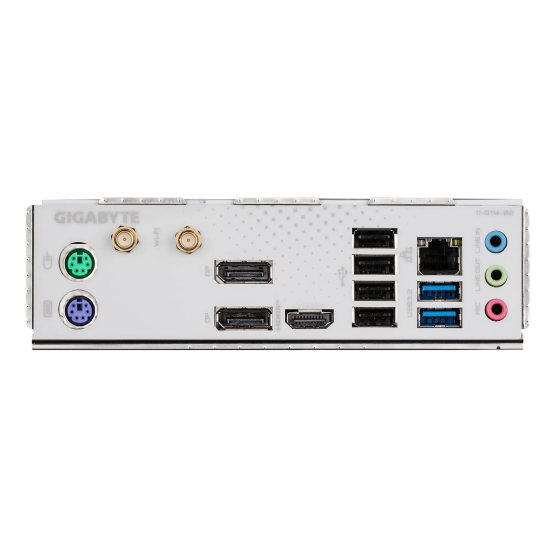

Connectors Internal I/O Connectors;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;2 x addressable RGB Gen2 LED strip headers;1 x front panel header;1 x front panel audio header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI;2.0/GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x Clear CMOS jumper;Back Panel Connectors;1 x PS/2 keyboard port;1 x PS/2 mouse port;2 x SMA antenna connectors (2T2R);2 x DisplayPorts;1 x HDMI port;2 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
Audio Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure;7.1-channel audio, access the audio software for audio settings.
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.0cm
OS Support for Windows 11 64-bit;Support for Windows 10 64-bit
Warranty 36 Months
