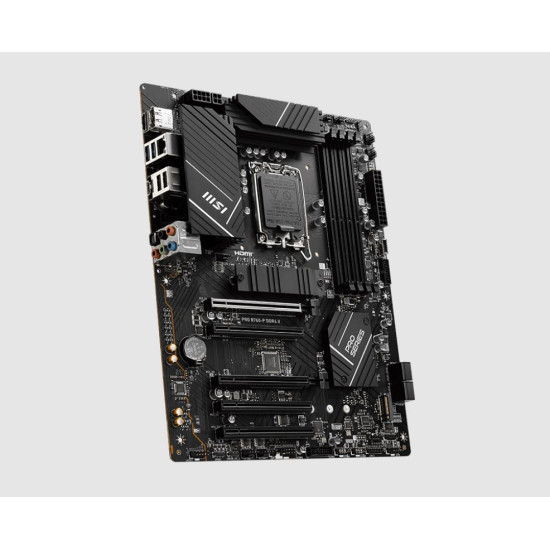

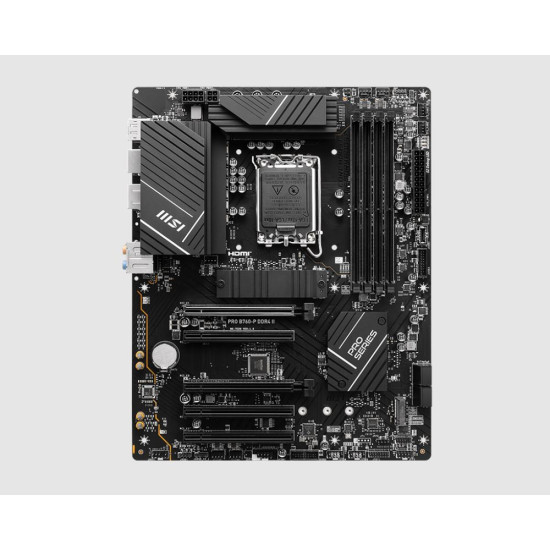

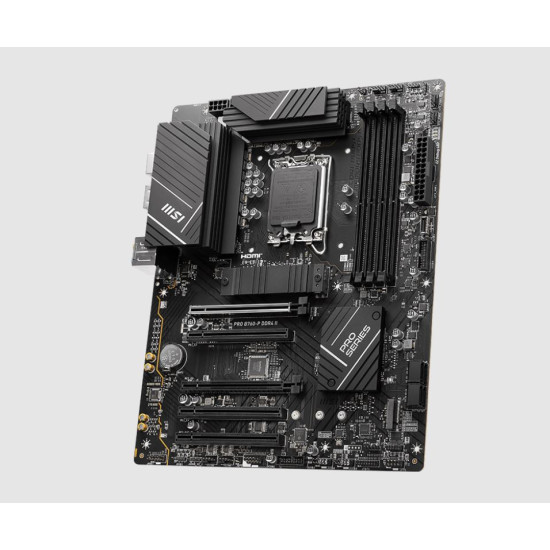

MSI B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 1XGLAN 5xPCIEx16

MSI
4x DDR5, Maximum Memory Capacity 256GB;Memory Support: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz;Max. overclocking frequency:;• 1DPC 1R Max speed up to 7000+ MHz;• 1DPC 2R Max speed up to 6400+ MHz;• 2DPC 1R Max speed up to 6000+ MHz;• 2DPC 2R Max speed up to 5600+ MHz;Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dual-Channel mode;Supports non-ECC, un-buffered memory
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
INTEL B760
1x HDMI; Support HDMI™ 2.1, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz*;
5x PCI-E x16 slot; PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset); PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset);
2x M.2;M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;4x SATA 6G;

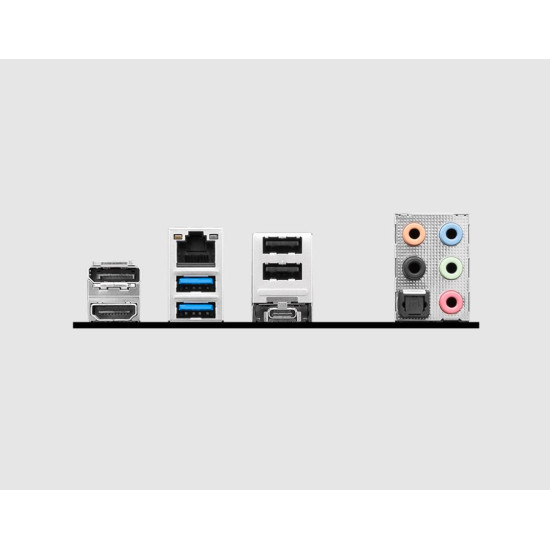

2x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);1x USB 5Gbps Type C (Front);1x USB 10Gbps Type C (Rear);
1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Pump Fan;5x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);2x Addressable V2 RGB LED connector (JARGB_V2);2x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 5Gbps Type C ports;
Realtek® ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output;
Realtek® RTL8125BG 2.5G LAN
ATX 243.84mmx304.8mm
Support for Windows® 11 64-bit, Windows® 10 64-bit
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
36 Months
