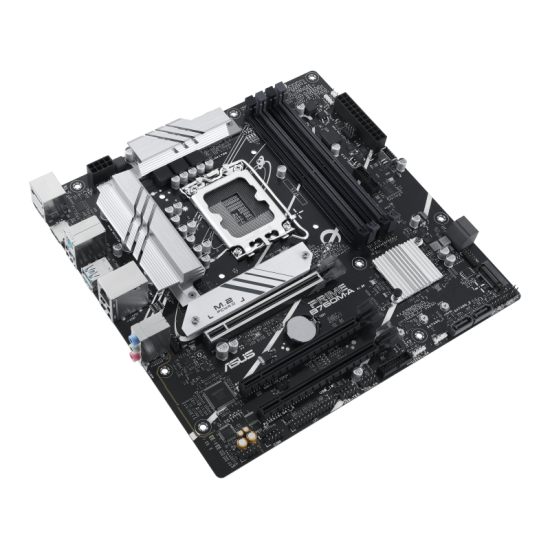

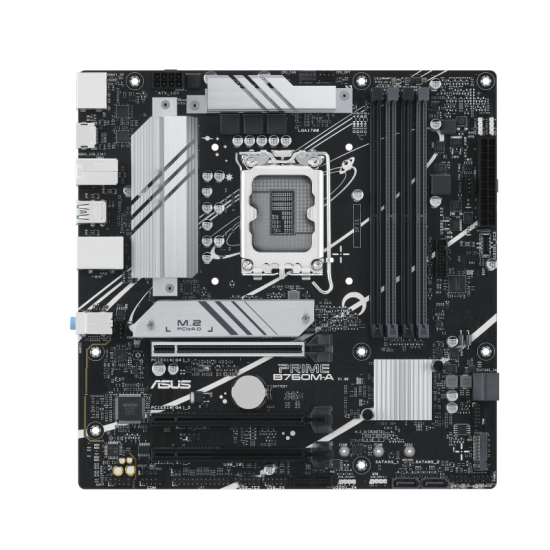

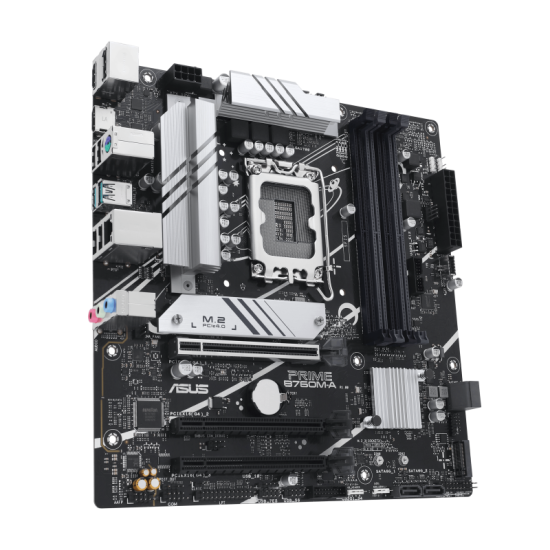

ASUS B760 4xDDR5 4xSATA3 RAID 2xHDMI DP 2xM2 GLAN 3xPCIEx16

Memory type 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
CPUs supported Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset Intel® B760 Chipset
Graphics 1 x DisplayPort**; 2 x HDMITM ports***
Expansion Slots Intel® 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

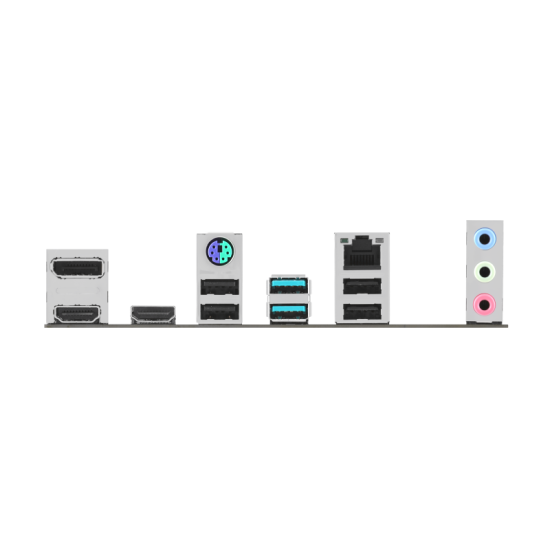

I/O 2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMITM ports; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Connectors 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headersPower related; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s portsUSB; 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN 1 x Realtek 2.5Gb Ethernet
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor;9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS Windows® 11, Windows® 10 64-bit
Warranty 36 Months
