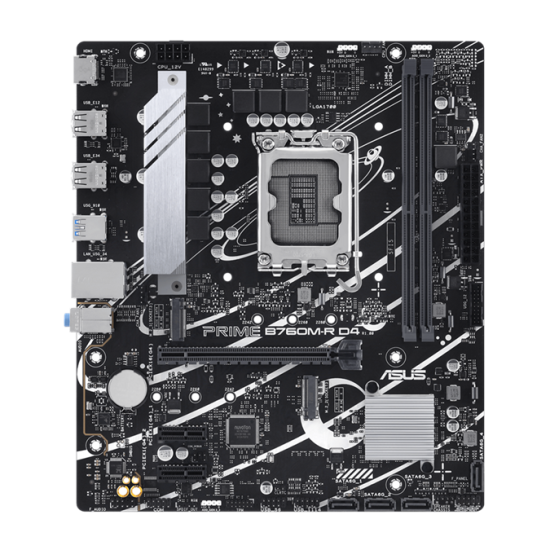

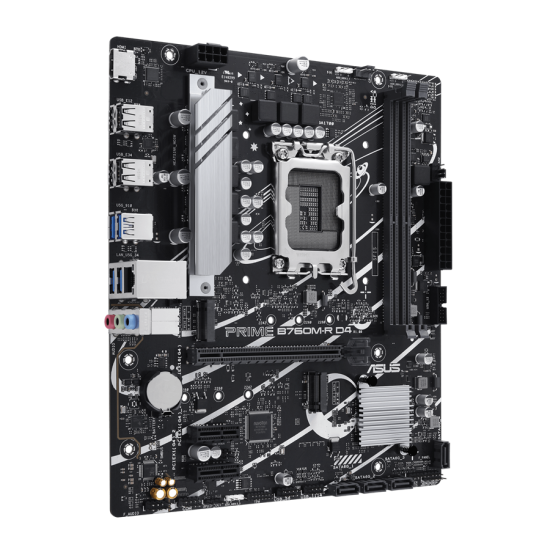

ASUS B760 2xDDR4 4xSATA3 RAID 2xHDMI DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1

Rear USB (Total 8 ports);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A)*;Front USB (Total 6 ports);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth
ASUS
2 x DIMM slots, Max. 64GB, DDR4;5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual channel memory architecture;Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage protection;- SafeSlot Core;- Stainless-steel back I/O;ASUS Q-Design- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS EZ DIY;- ProCool;ASUS Thermal Solution;- VRM heatsink design;Aura Sync;- Addressable Gen 2 headers
Intel® Socket LGA1700 for Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel® B760 Chipset
1 x HDMITM port
Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® B760 Chipset;2 x PCIe 4.0 x1 slots
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Processors (14th & 13th & 12th Gen);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);Intel® B760 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

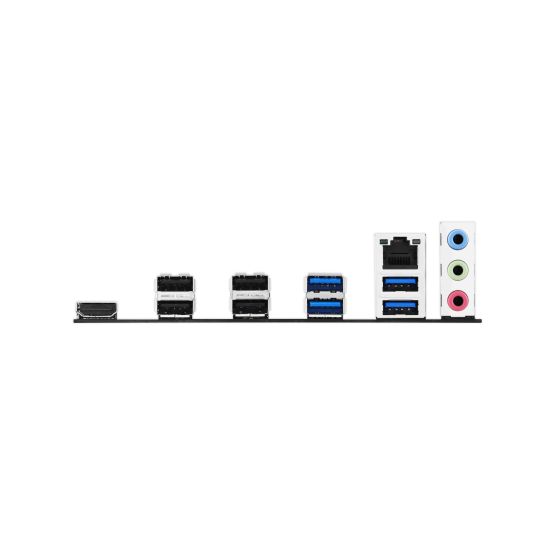

4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks
Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 portMiscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x COM Port header1 x Front panel audio header (F_AUDIO);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
1 x Realtek 2.5Gb Ethernet
128 Mb Flash ROM, UEFI AMI BIOS
micro-ATX Form Factor;24.4cm x 21.1cm
Windows® 11, Windows® 10 64-bit
36 Months
