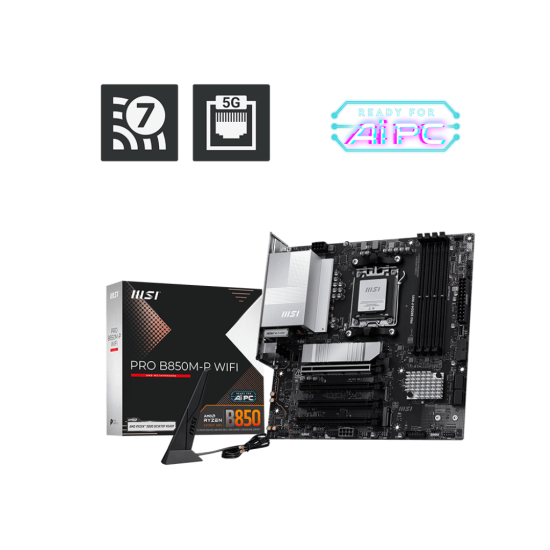

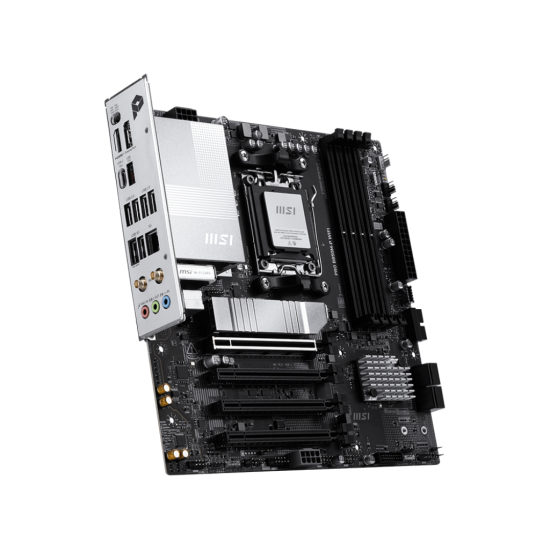

MSI B850 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi

4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);1x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front)
MSI
Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;Supports Bluetooth® 5.4, MLO, 4KQAM
4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8200+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 6000+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only
4x EZ Debug LED;1x EZ Memory Detection LED
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5
AMD B850
5.4
1x HDMI™;Support HDMITM 2.1, maximum resolution of 4K 60Hz;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz
4x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E1 slot;• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors);• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
3x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices;4x SATA 6G;M2_1 slot;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors);M2_2 slot;• Supports up to PCIe 4.0 x4;• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors);Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices

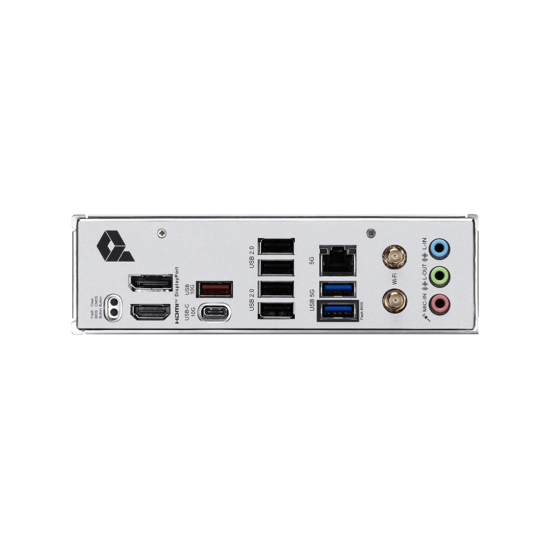

Clear CMOS Button;DisplayPort;USB 10Gbps Type-A;USB 2.0;5G LAN;Wi-Fi / Bluetooth;Audio connectors;Flash BIOS Button;HDMI™;USB 10Gbps Type-C;USB 5Gbps Type-A
1x Power Connector(ATX_PWR);1x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);3x System Fan;2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2);1x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);4x USB 2.0 ports;4x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
Realtek® ALC897;7.1-Channel High Definition Audio
Realtek® 8126VB 5G LAN
mATX 243.84mmx243.84mm
Support for Windows® 11 64-bit
36 Months
