MSI B860 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi

MSI
Intel® Killer™ BE1750x Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;Max. overclocking frequency:;• 1DPC 1R Max speed up to 9200+ MT/s;• 1DPC 2R Max speed up to 7200+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 5600+ MT/s;Supports Intel® POR Speed and JEDEC Speed;Supports Memory Overclocking and Intel® XMP 3.0;Supports Dual-Controller Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM
4x EZ Debug LED;1x EZ Memory Detection LED
Supports Intel® Core™ Ultra Processors (Series 2);LGA 1851
INTEL B860
Supports Bluetooth® 5.4**, MLO, 4KQAM
1x HDMI™;Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz;1x Type-C DisplayPort;Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
2x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
3x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices;M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;4x SATA 6G;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

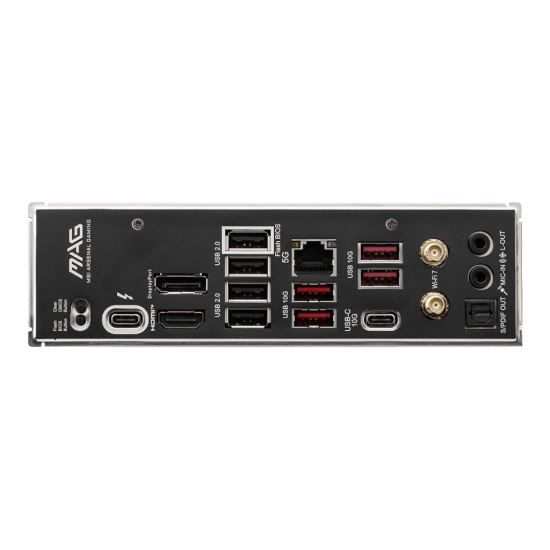

Thunderbolt Resource CPU;1x Thunderbolt4 ports (Rear);Supports up to 40Gbps transfer rate with Thunderbolt devices;Supports up to 20Gbps transfer rate with USB4 devices;Supports up to 10Gbps transfer rate with USB 3.2 devices;Supports up to 5V/3A,15W power charging;Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices;Supports up to 8K display;4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Front);4x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front);1x USB 40Gbps Type C (Rear);• Clear CMOS Button;• DisplayPort;• USB 2.0 (Flash BIOS Port);• 5G LAN;• USB 10Gbps Type-A;• Audio Connectors;• Flash BIOS Button;• Thunderbolt™ 4 40Gbps (Type-C);• HDMI™;• USB 2.0;• USB 10Gbps Type-A;• USB 10Gbps Type-C;• Wi-Fi / Bluetooth;• S/PDIF-OUT
1x Thunderbolt5 card connector(JTBT5, support RTD3);1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);5x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Tuning Controller connector(JDASH);3x Addressable V2 RGB LED connector (JARGB_V2);2x RGB LED connector(JRGB);1x TPM pin header(Support TPM 2.0);1x OC dashboard connector(JDASH1);4x USB 2.0 ports;2x USB 5Gbps Type A ports;1x USB 10Gbps Type C ports
Realtek® ALC897 Codec;7.1-Channel High Definition Audio;Supports S/PDIF output
Intel® Killer™ E5000 5Gbps LAN
ATX, 243.84mmx304.8mm
Support for Windows® 11 64-bit
36 Months
