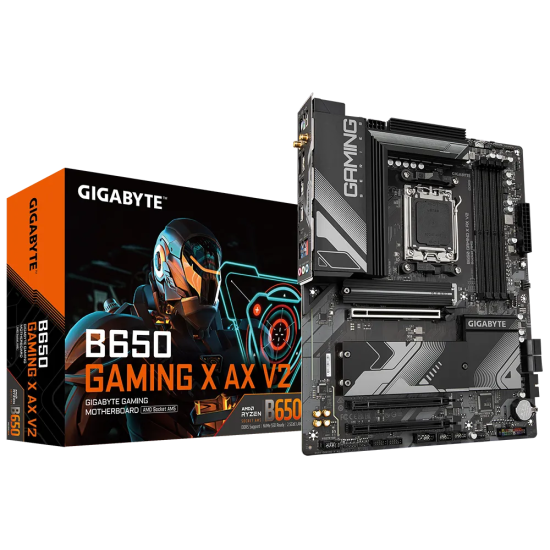

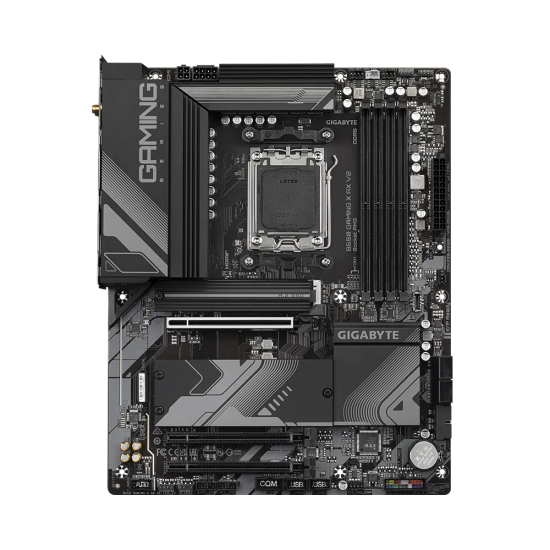

GIGABYTE B650 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 3xPCIEx16 WiFI

GIGABYTE
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard;AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.2;-Support for 11ax 160MHz wireless standard;Intel® Wi-Fi 6E AX210 (PCB rev. 1.2);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.;Support for Q-Flash;Support for Q-Flash Plus
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
AMD B650
Integrated Graphics Processor with AMD Radeon™ Graphics support;-1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.)
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot;Chipset;-2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;-AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;-4 x SATA 6Gb/s connectors;-RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;-RAID 0, RAID 1, and RAID 10 support for SATA storage devices
CPU;-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;-1 x USB 3.2 Gen 1 port on the back panel;CPU + USB 2.0 Hub;-3 x USB 2.0/1.1 ports on the back panel;Chipset;-1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);-4 x USB 2.0/1.1 ports available through the internal USB headers

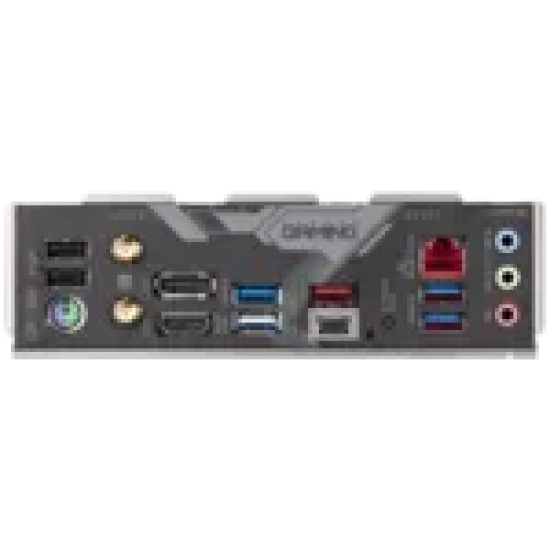

iTE® I/O Controller Chip;1x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;2 x system fan headers;1 x system fan/water cooling pump header;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;3 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x serial port header;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors:;2 x SMA antenna connectors (2T2R);1 x Q-Flash Plus button;1 x DisplayPort;1 x HDMI port;1 x USB Type-C® port, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 2 Type-A port (red);3 x USB 3.2 Gen 1 ports;3 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
ATX Form Factor; 30.5cm x 24.4cm
Support for Windows 11 64-bit;Support for Windows 10 64-bit
36 Months
